Ford’s Mustang Mach 2
by Jim and Cheryl Farrell
The 1960s were a heady time for Ford. In 1962–3 Ford developed its small block V-8 engine (later used in the Mustang) for racing use. In 1964 that engine got double-overhead-cams—for racing only. In 1965, a Lotus powered by a highly-modified small block Ford V-8 engine won the Indy 500. From 1966-69, Ford won the 24 hour race at LeMans four years in a row. Not only was Ford’s racing program doing well, Mustangs were selling like hotcakes! The double success of Ford racing and the Mustang led to a concept car called the Mach 2. It was a proposed mid-engined, two-seat sports car.
The Ford personnel most responsible for development of the Mustang Mach 2 were Lee Iacocca, Gene Bordinat and Roy Lunn. Iacocca became general manager of Ford Division in 1961. Because of the runaway success of the Mustang, he was placed in charge of all of Ford’s cars and trucks in 1965. Bordinat, who started at Ford in 1947, became Ford’s Chief Designer in 1961. Lunn, who started at Ford of England in 1953, came to the U.S. in 1958. He eventually became head of Ford’s Advanced Vehicle Center, and was deeply involved in the final development of the Mach II as a road-ready car and also as a potential race car.

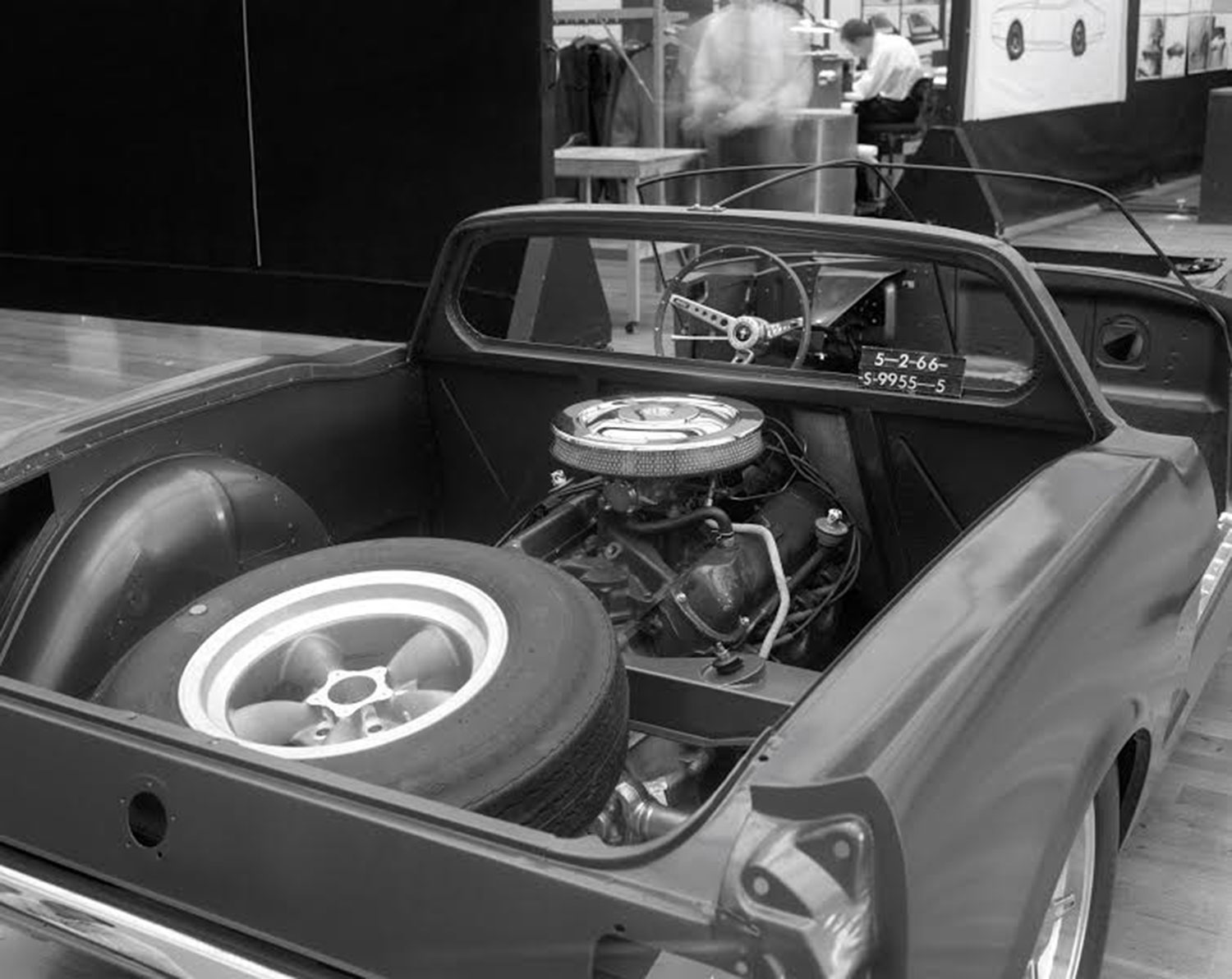

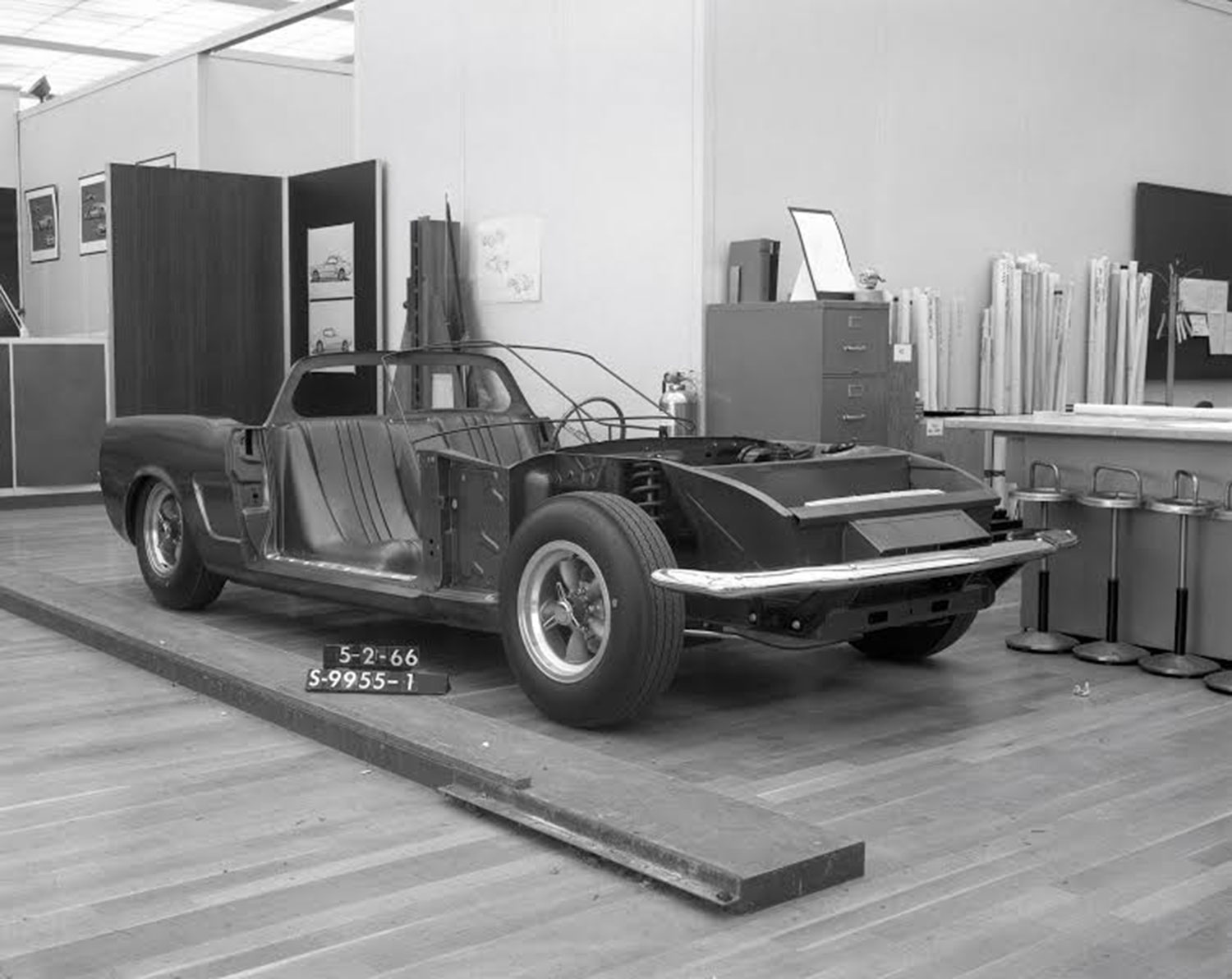

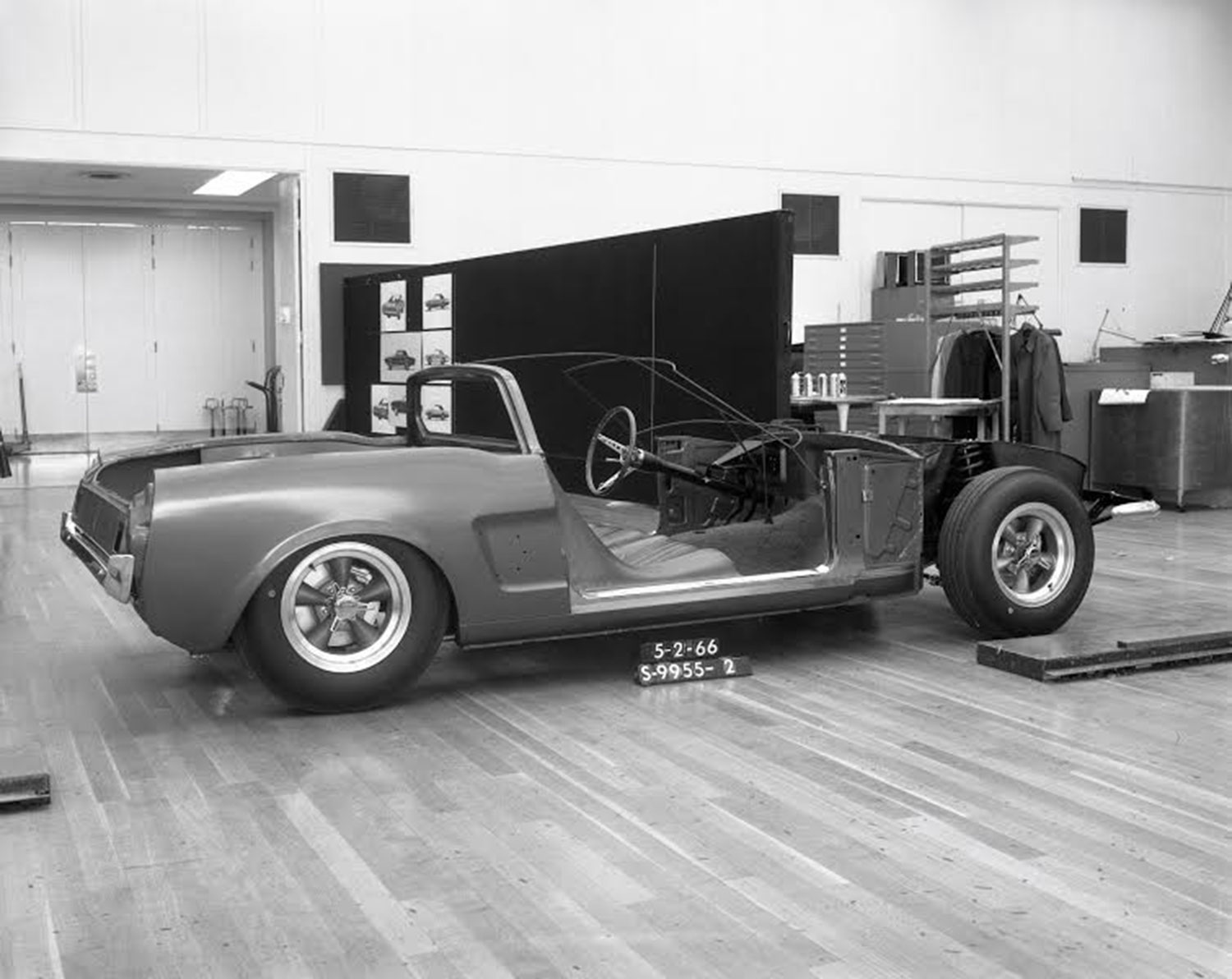

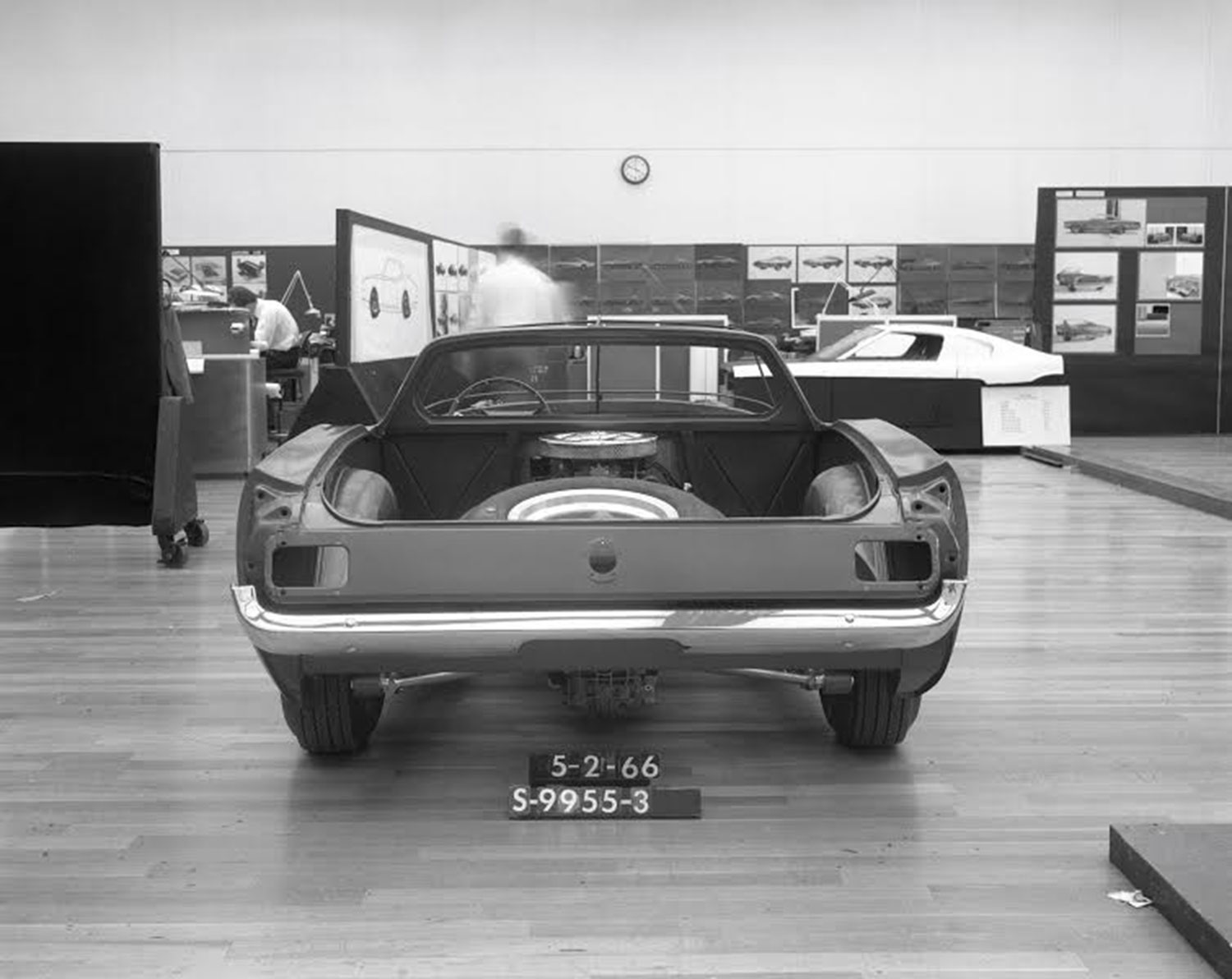

Whose idea it was to build a mid-engined sports car from a Mustang is lost to history. From a design standpoint, however, the project got started in early 1966. Bordinat assigned the project to the Corporate Projects Studio. According to designer Bud Magaldi, Jerry Morrison was the primary designer working on the Mach II. Magaldi had recently been hired, and working on the design of the Mach 2 was one of his first assignments. Morrison and Magaldi worked with a talented design engineer named Bob Huzzard who got his start during World War II designing autogiros. Huzzard went on to become a designer at both Hudson and Briggs Manufacturing before switching to design engineering at AMC and then Chrysler. He came to Ford in February 1964, and was immediately assigned by Bordinat to the Corporate Projects studio as a design engineer. Morrison and Magaldi designed the outside of the Mach II, while Huzzard was the one who engineered a ‘66 Mustang into a mid-engined sports car with independent rear suspension.

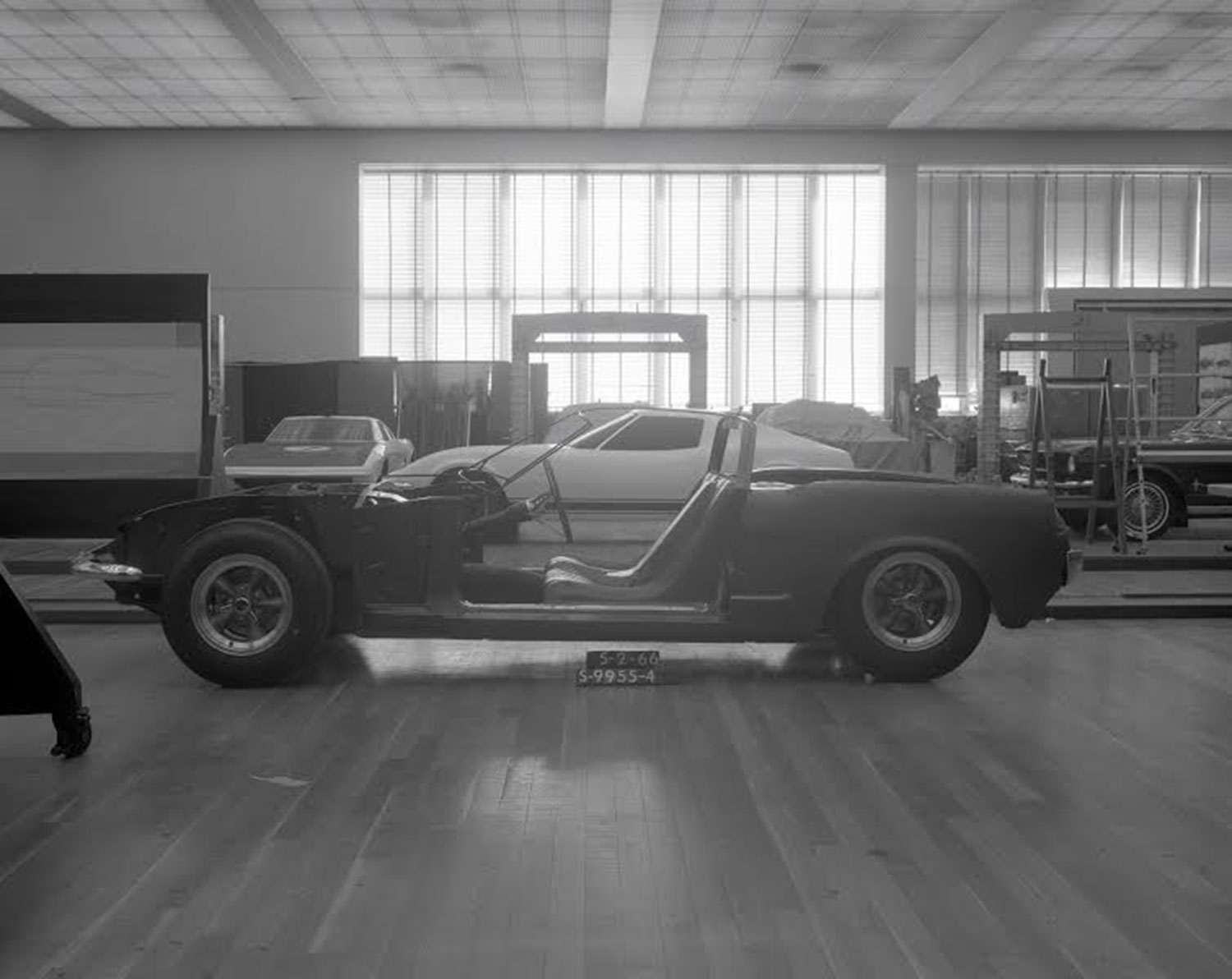

Design and engineering work at Ford’s Design Center was completed by early 1967, and the Mach II was then moved to Kar Kraft, a local job shop set up by Lunn for Ford, where it was finished into a street legal car. Kar Kraft actually built two operable Mach 2 sports cars (red cars) and one race version (white car).

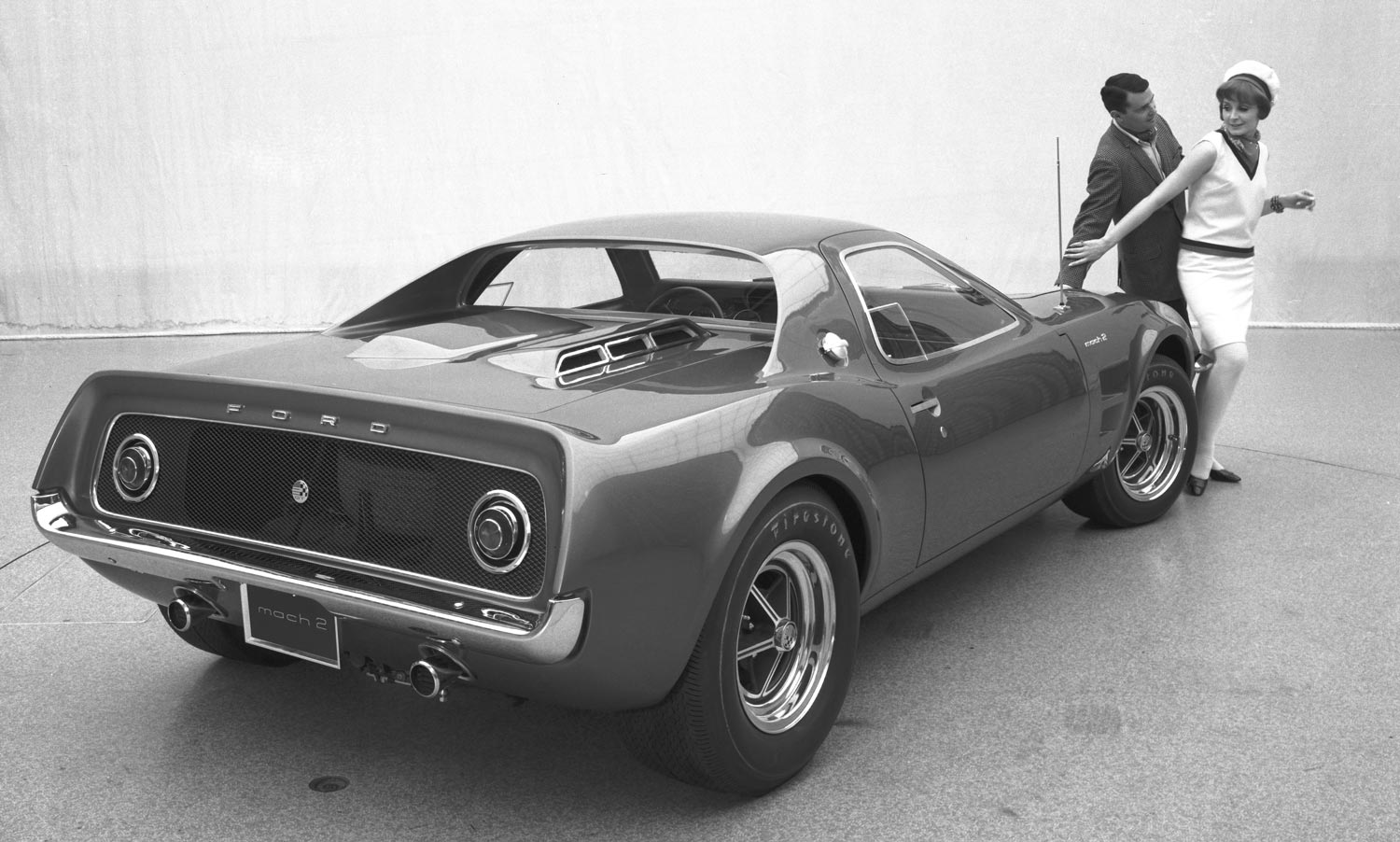

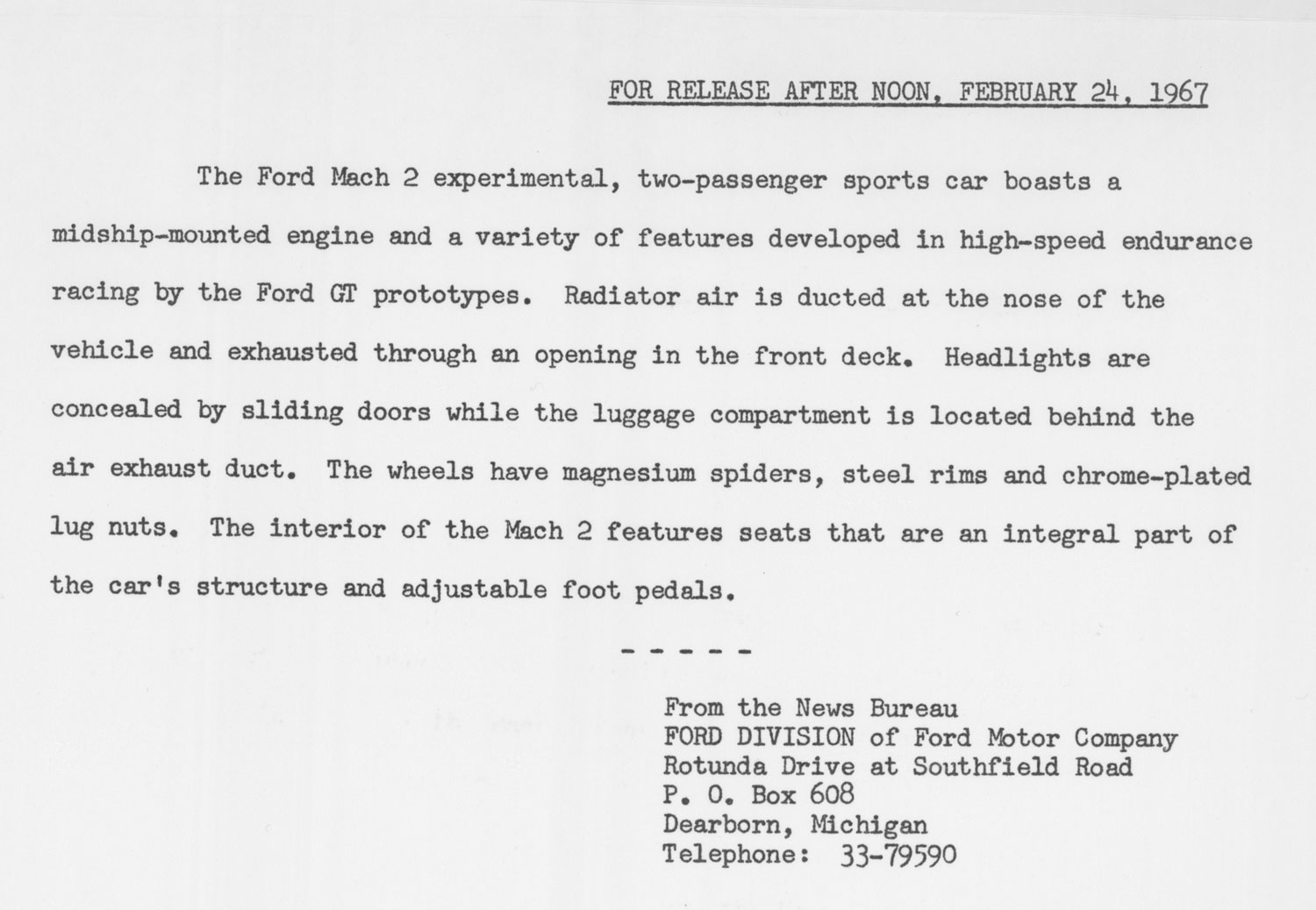

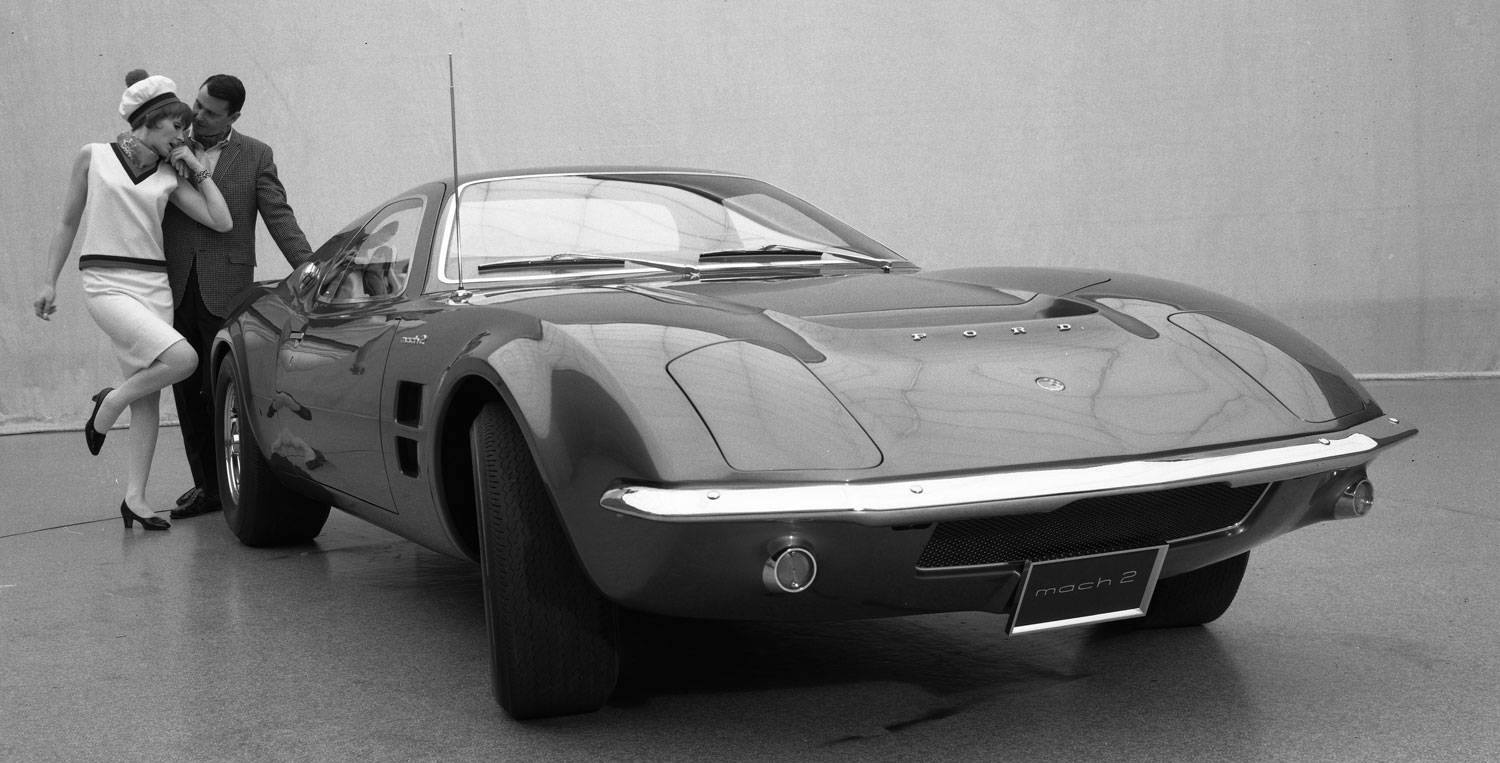

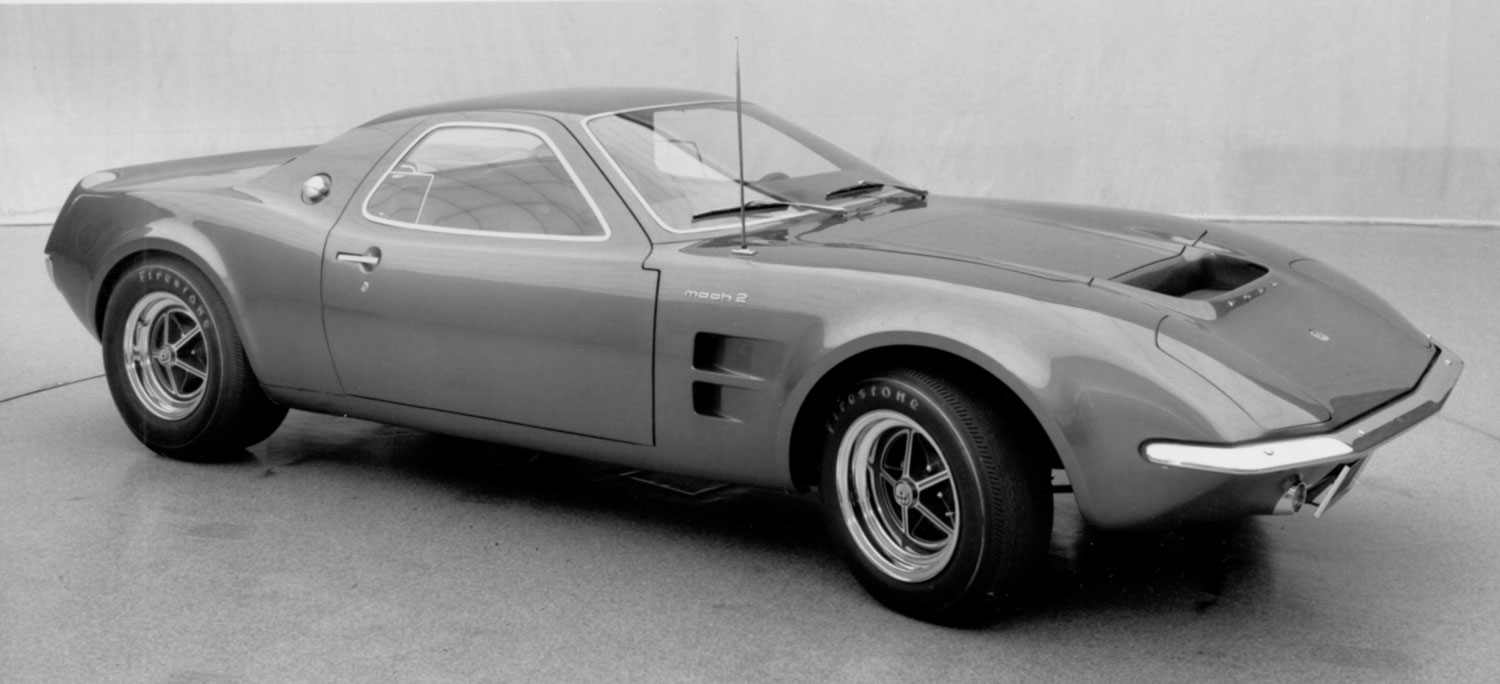

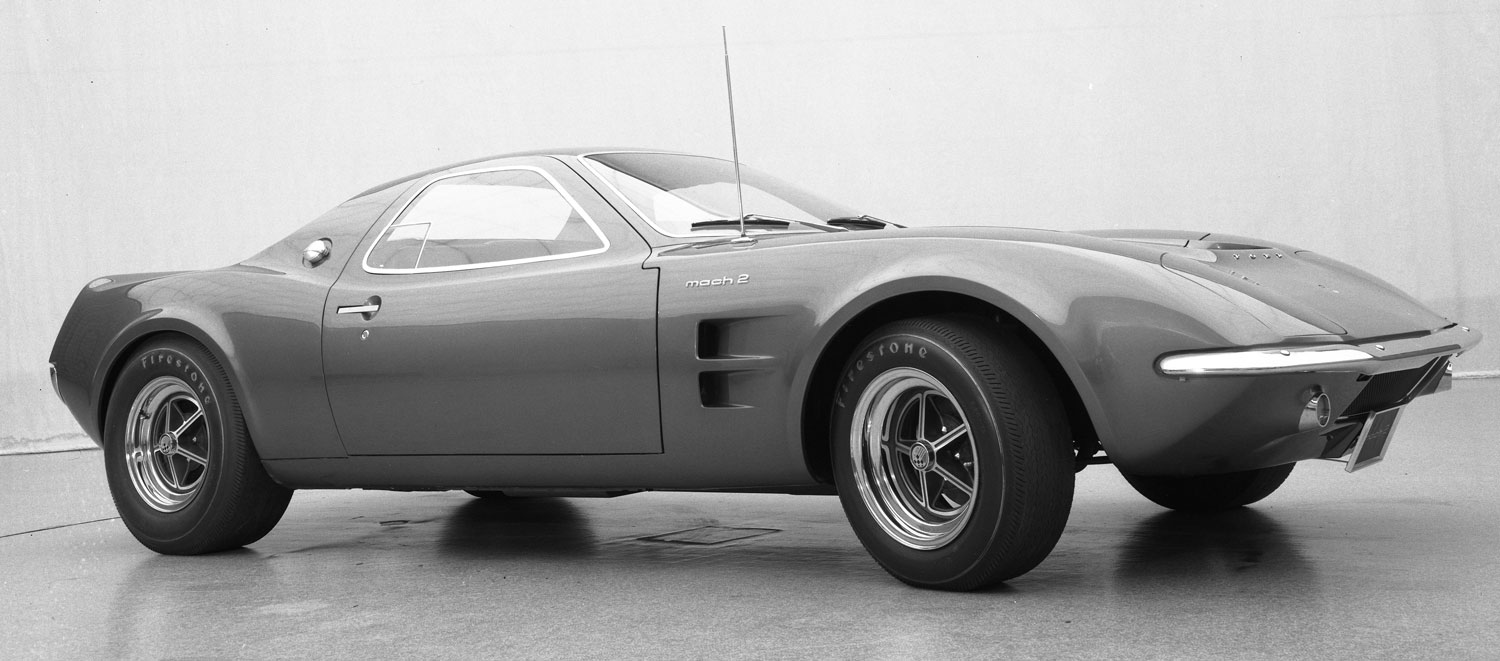

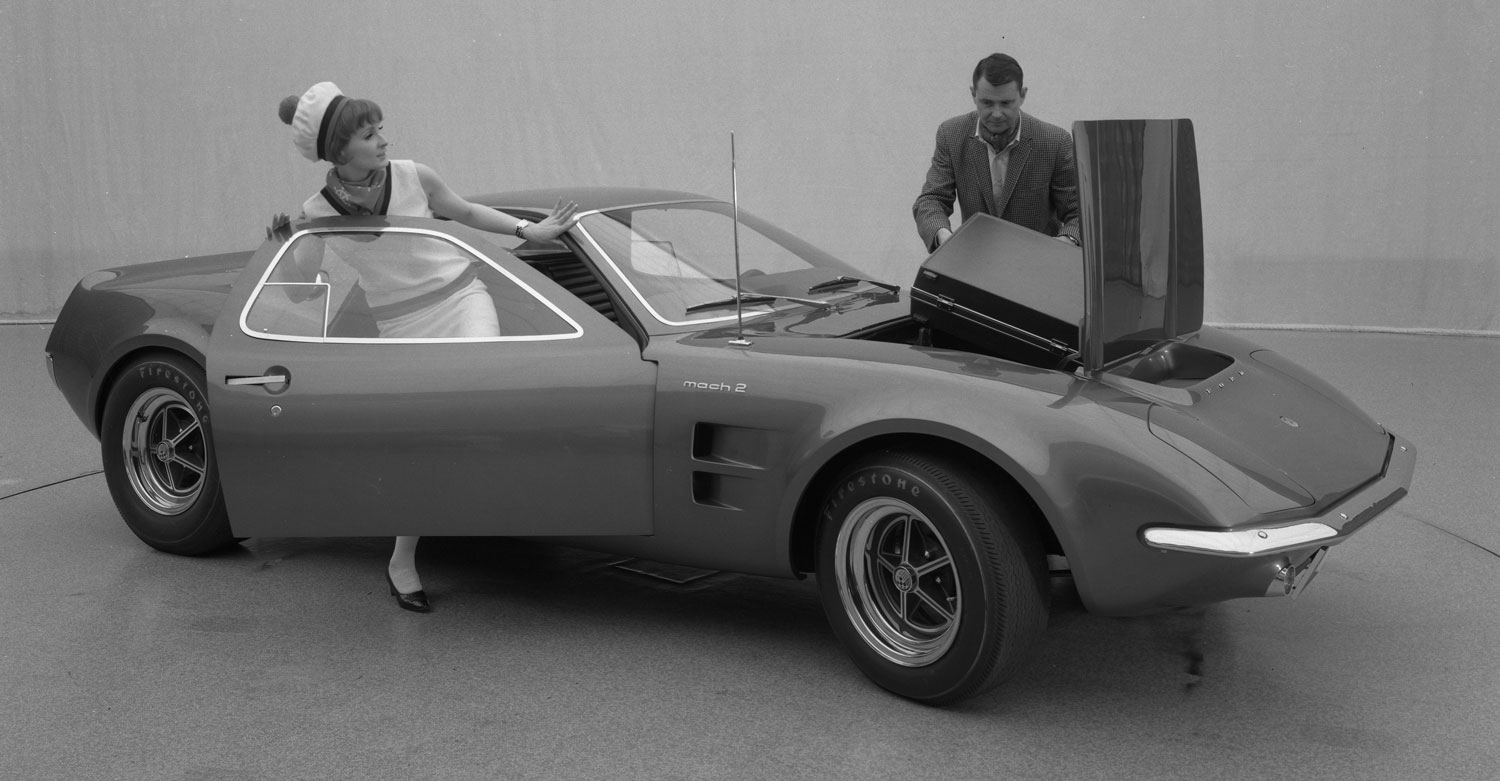

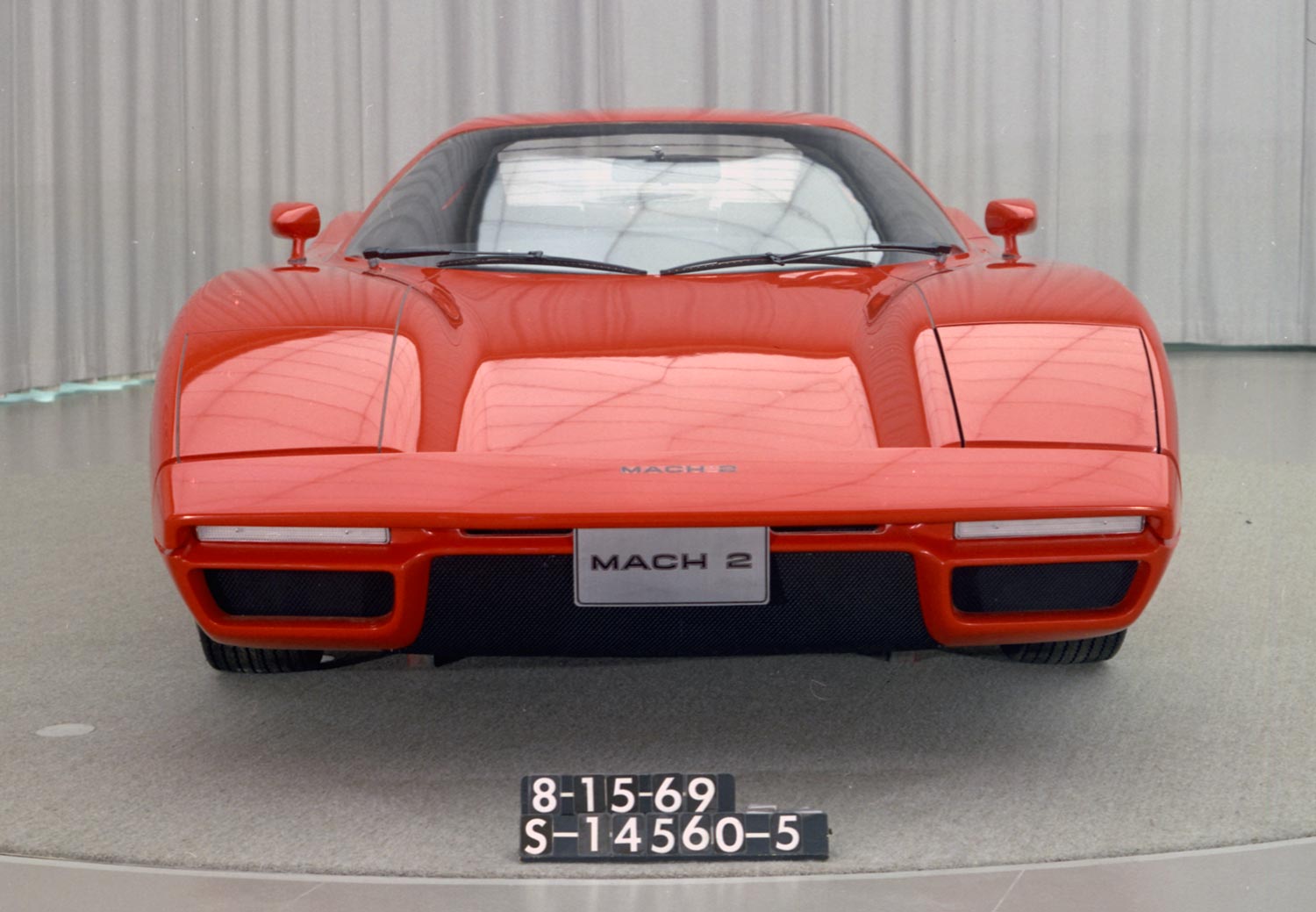

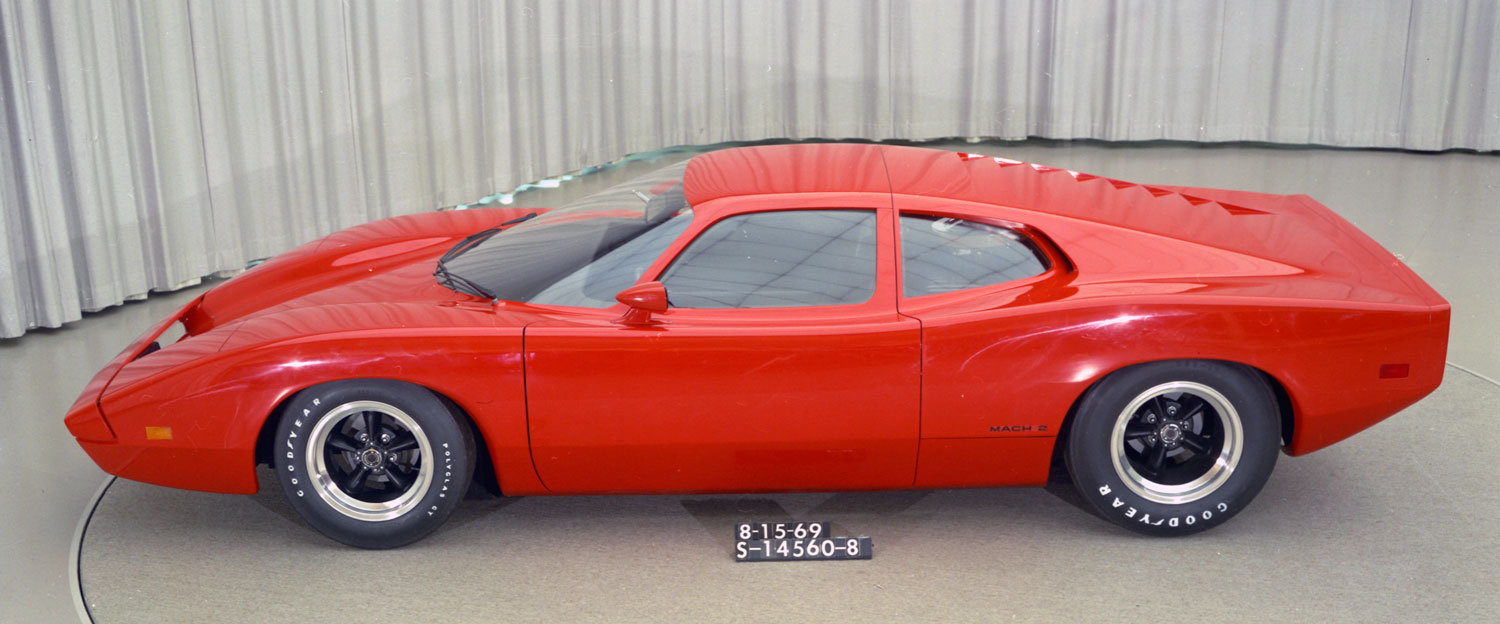

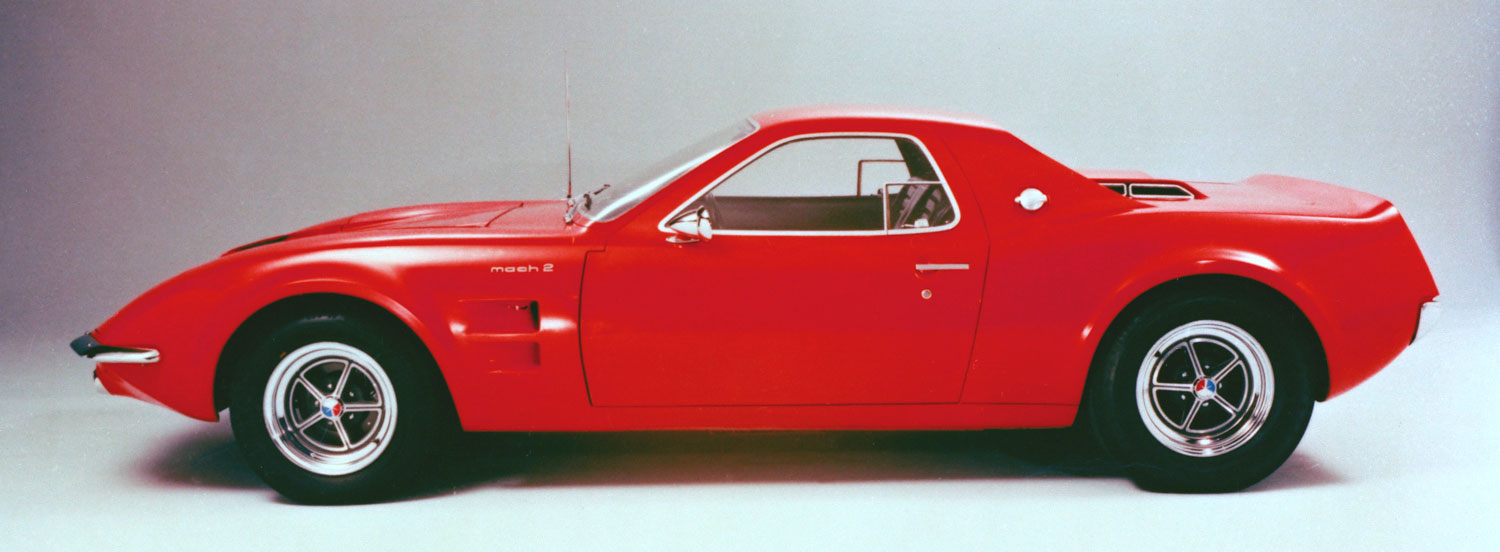

According to Ford, the Mach 2 had a wheelbase of 107.3 inches, weighed 2,650 lbs, was powered by a 289 CID mid engine and had doors that “opened high into the roof.” The car was a big hit at the ’67 Detroit Auto Show. Sometime after 1967, Ford determined production was not in the cards, supposedly because of the car’s complexity and the costs involved. Until 1970, the red cars were often featured in parades and other events in the Dearborn area. The race version Mach 2 was eventually crushed, and the two sports car versions of the Mach 2 disappeared sometime after Kar Kraft shuttered its doors in late 1970. Maybe they were crushed, maybe not, but there’s a postscript to the story.

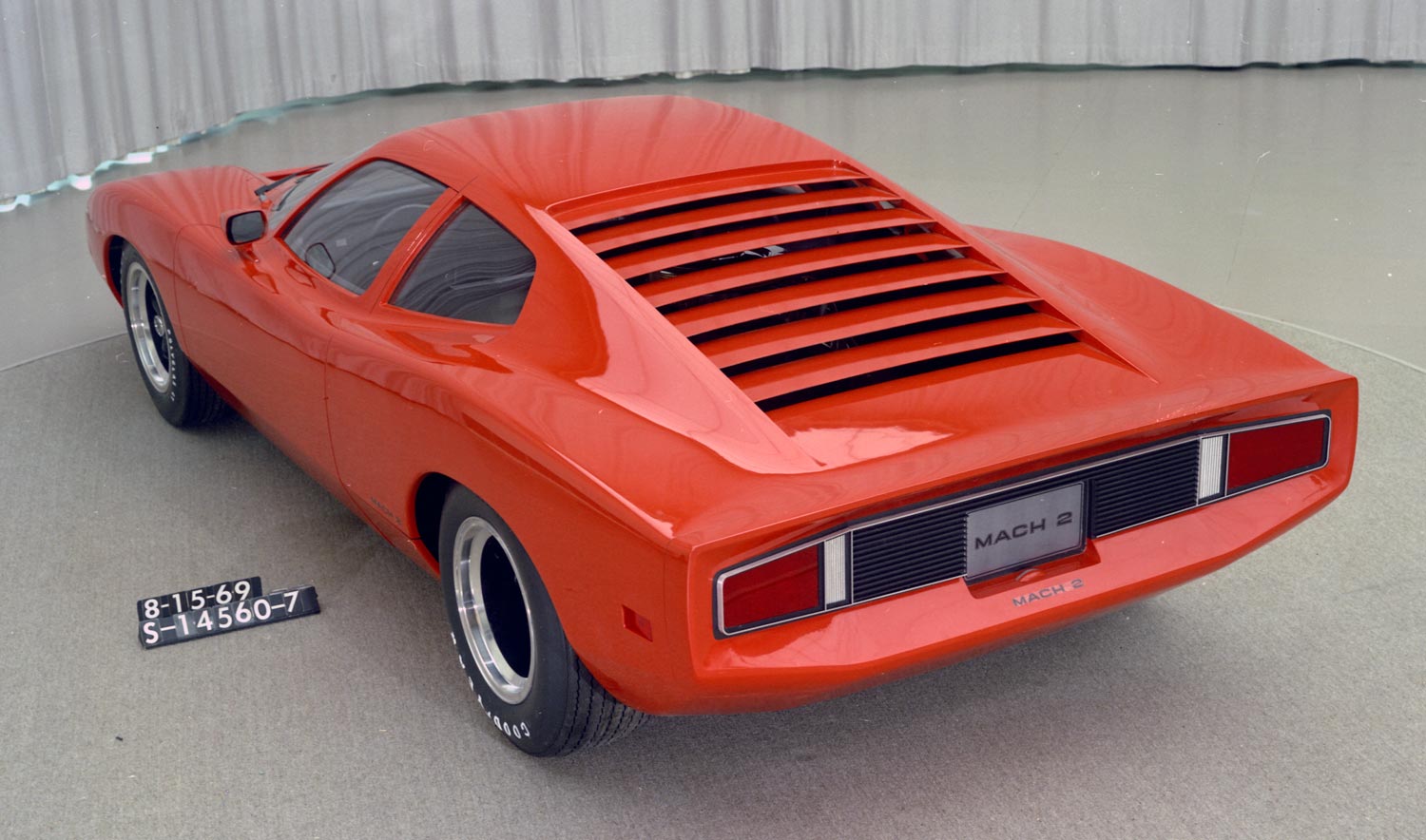

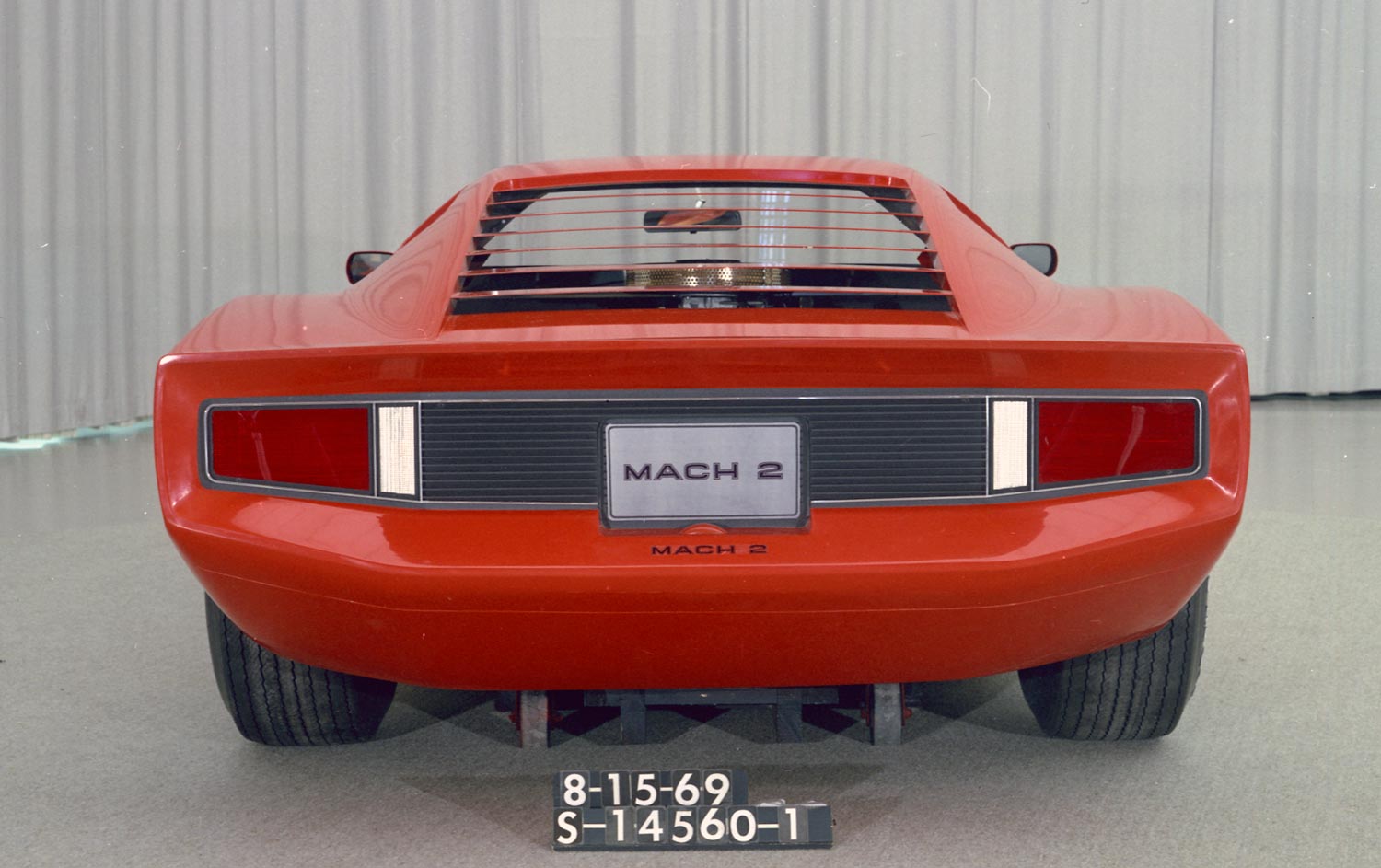

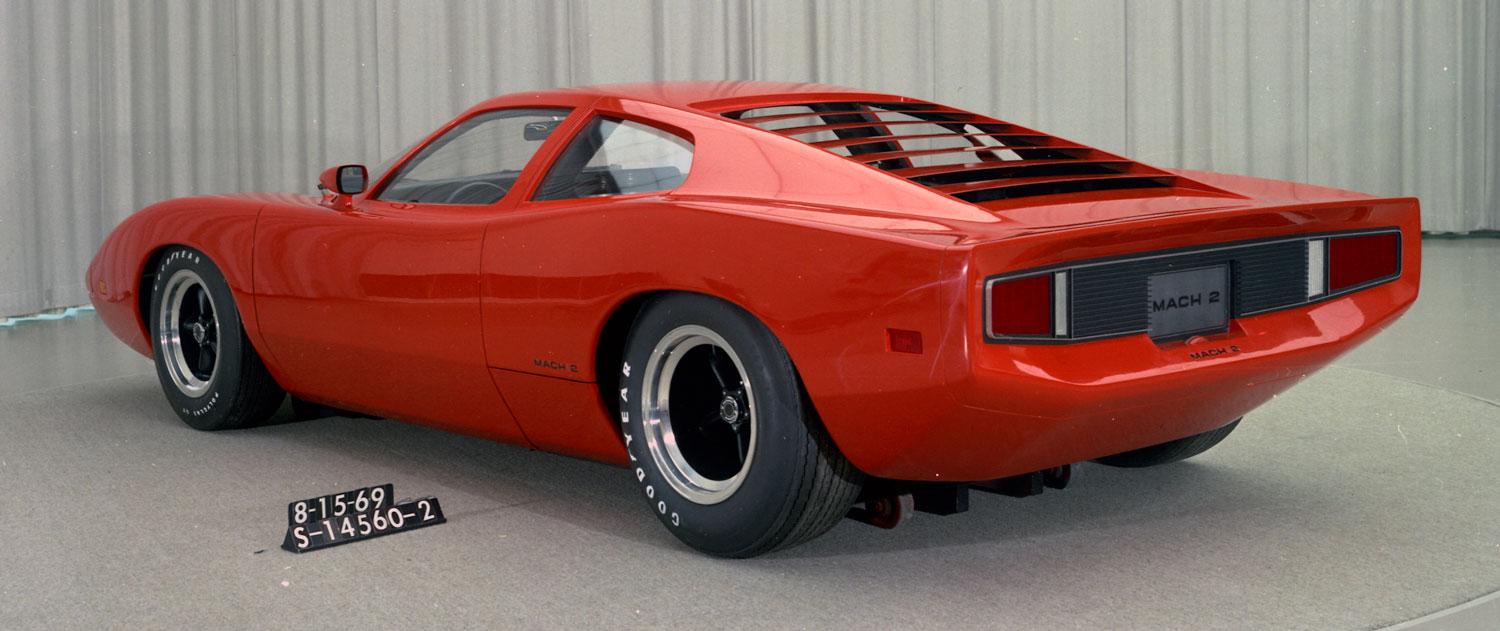

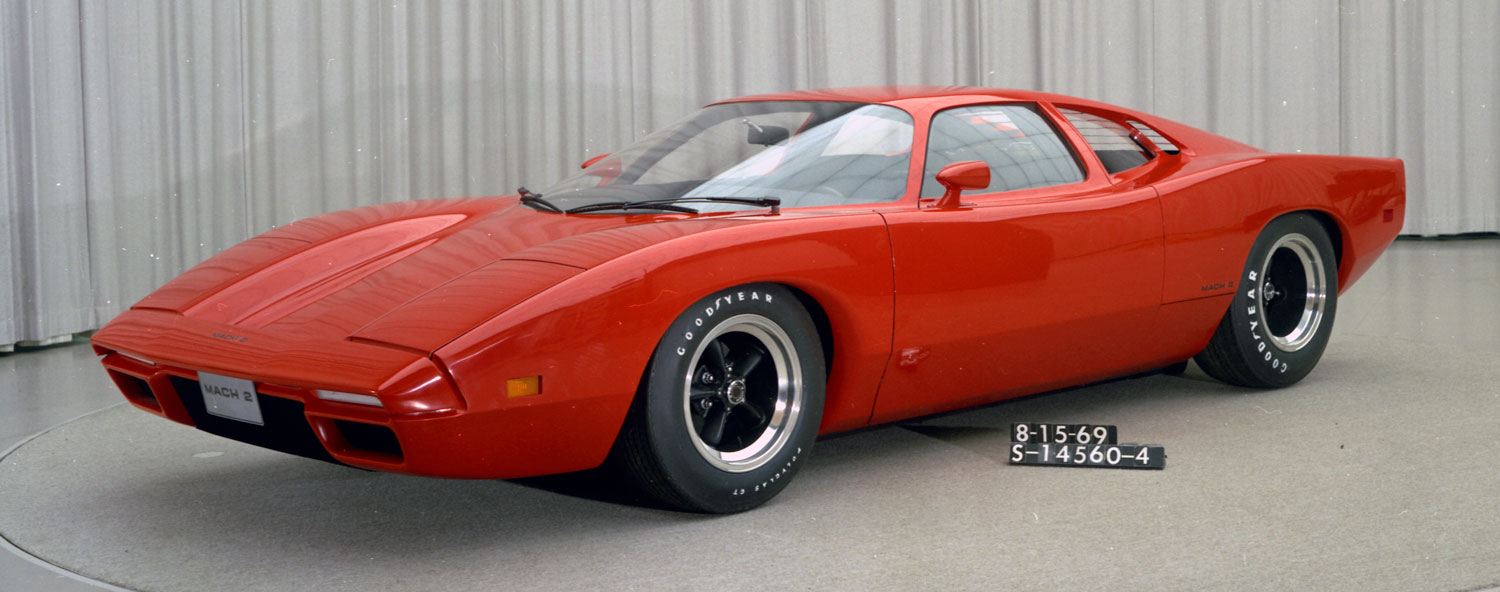

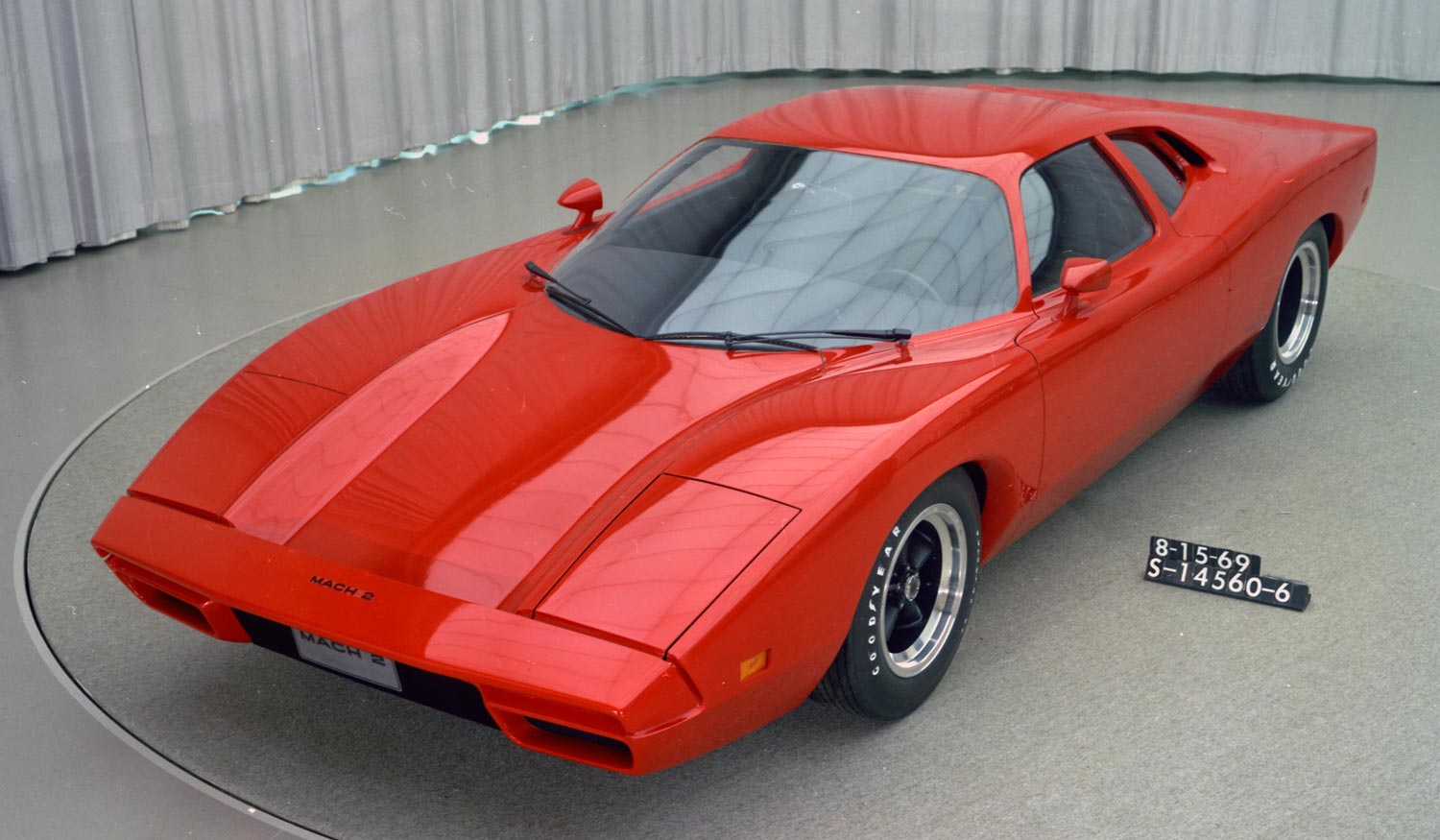

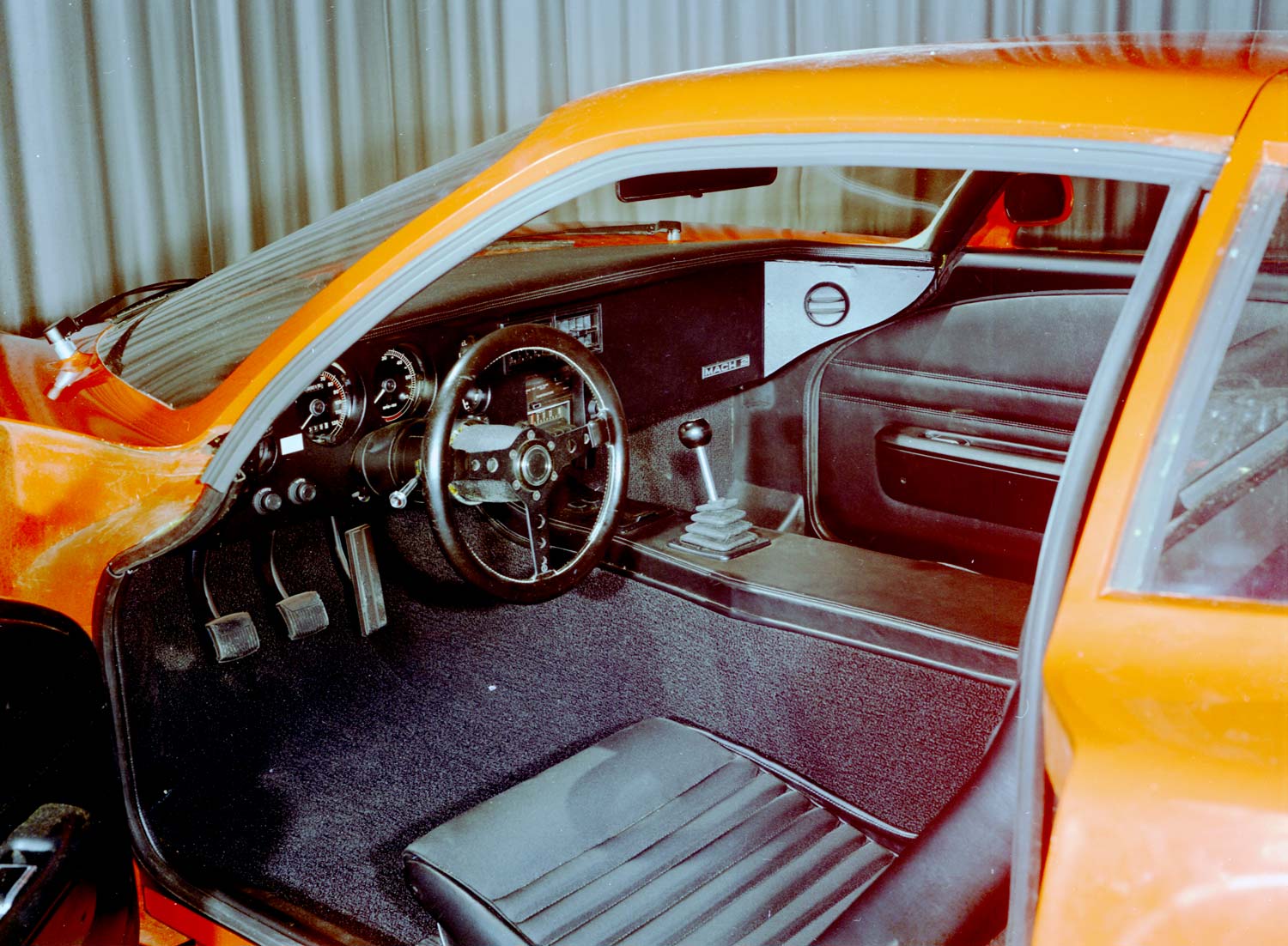

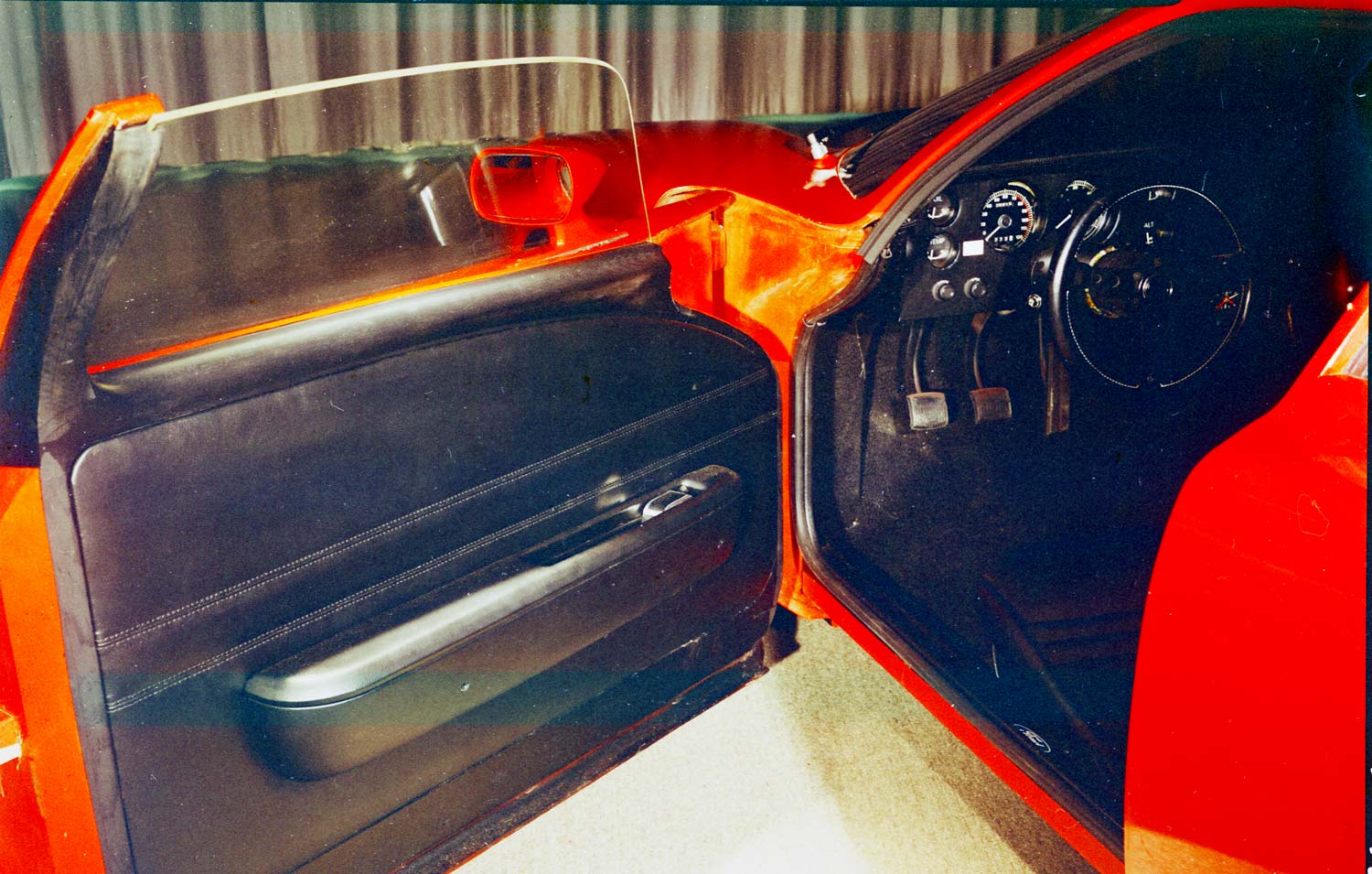

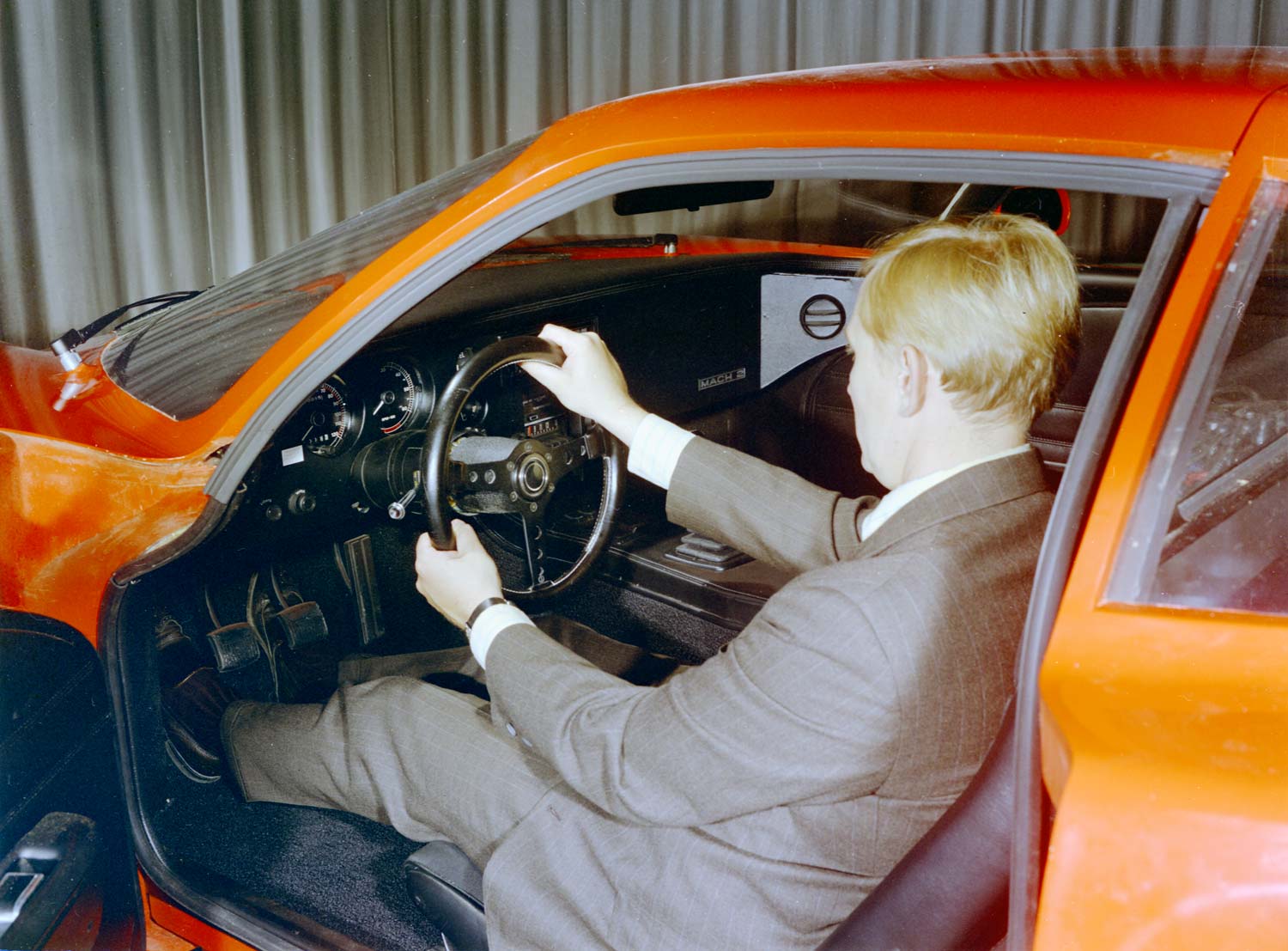

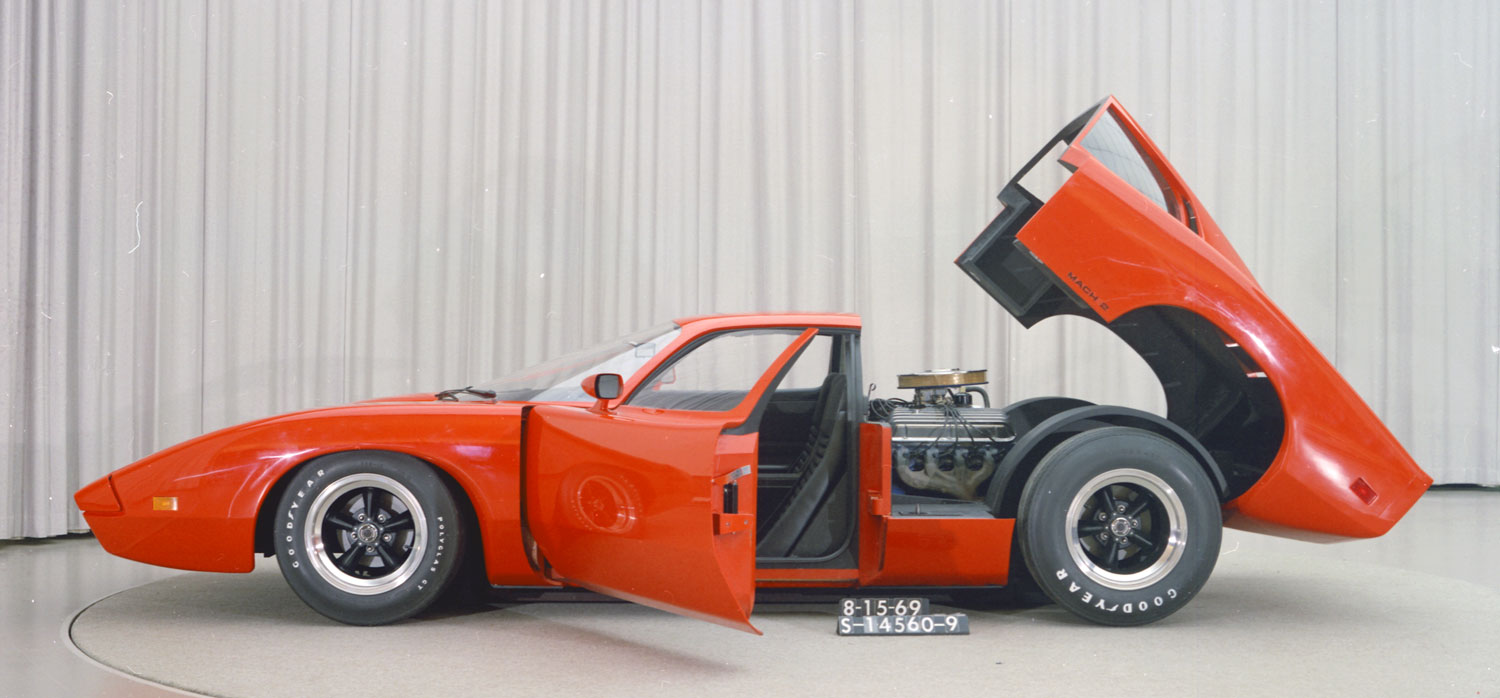

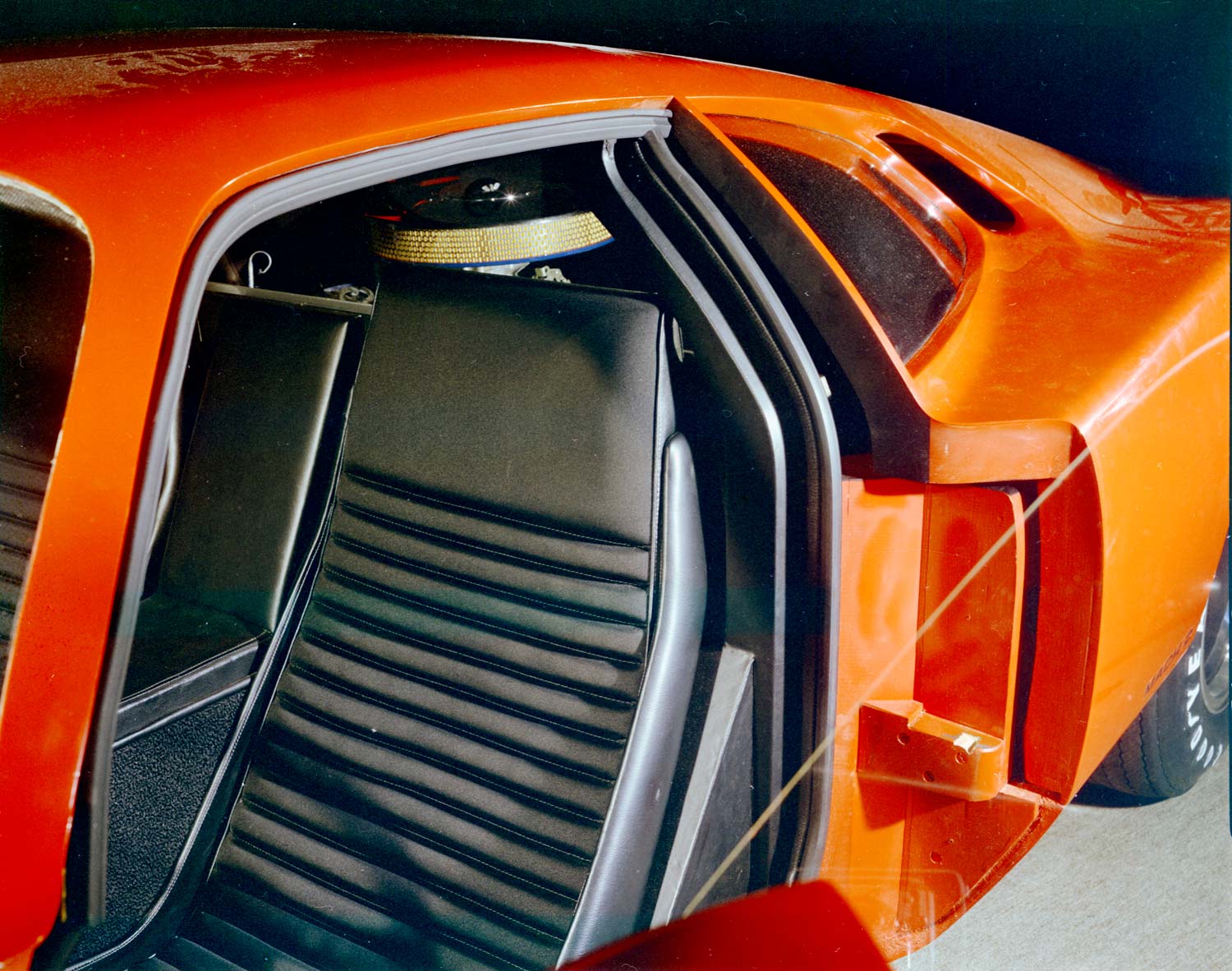

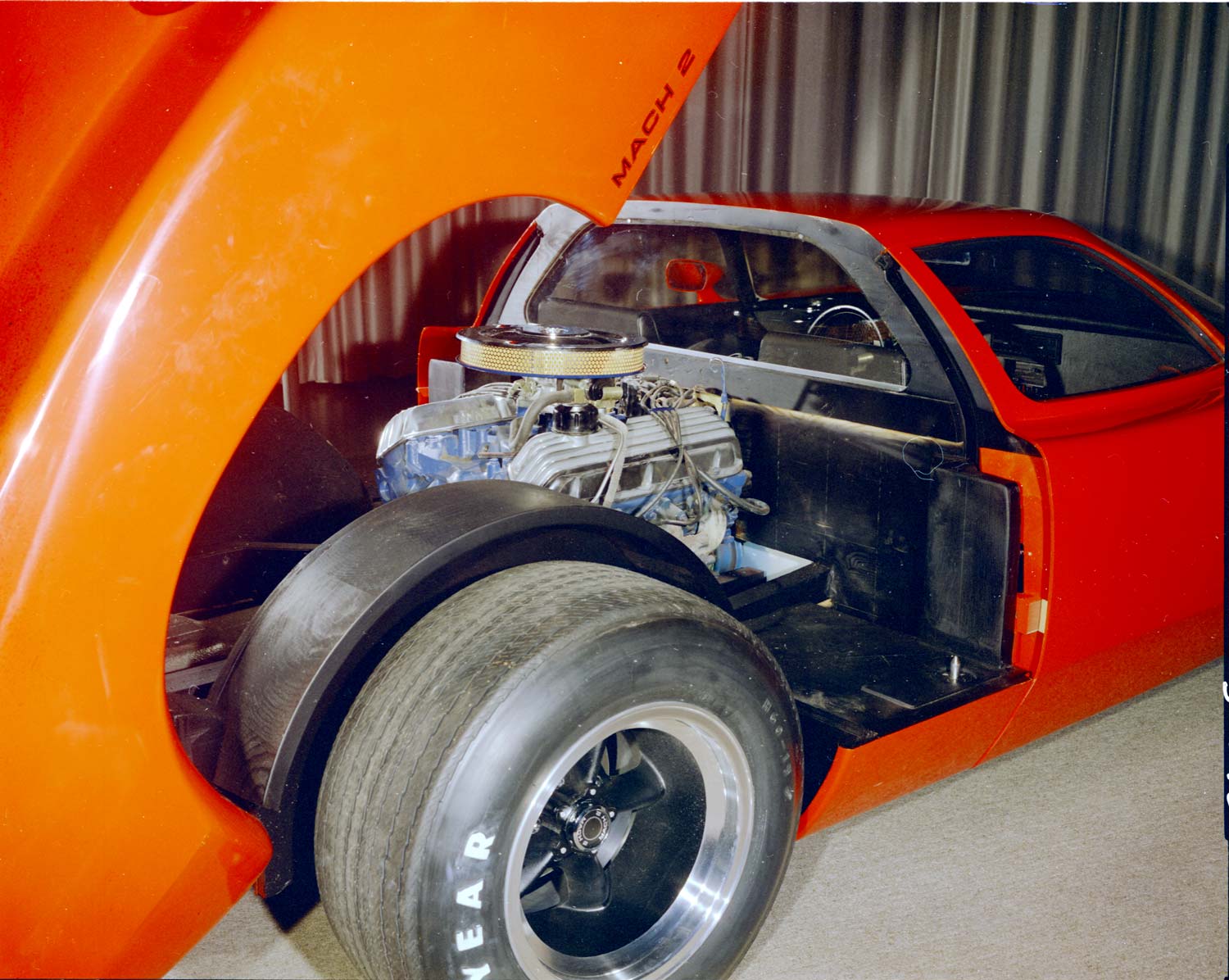

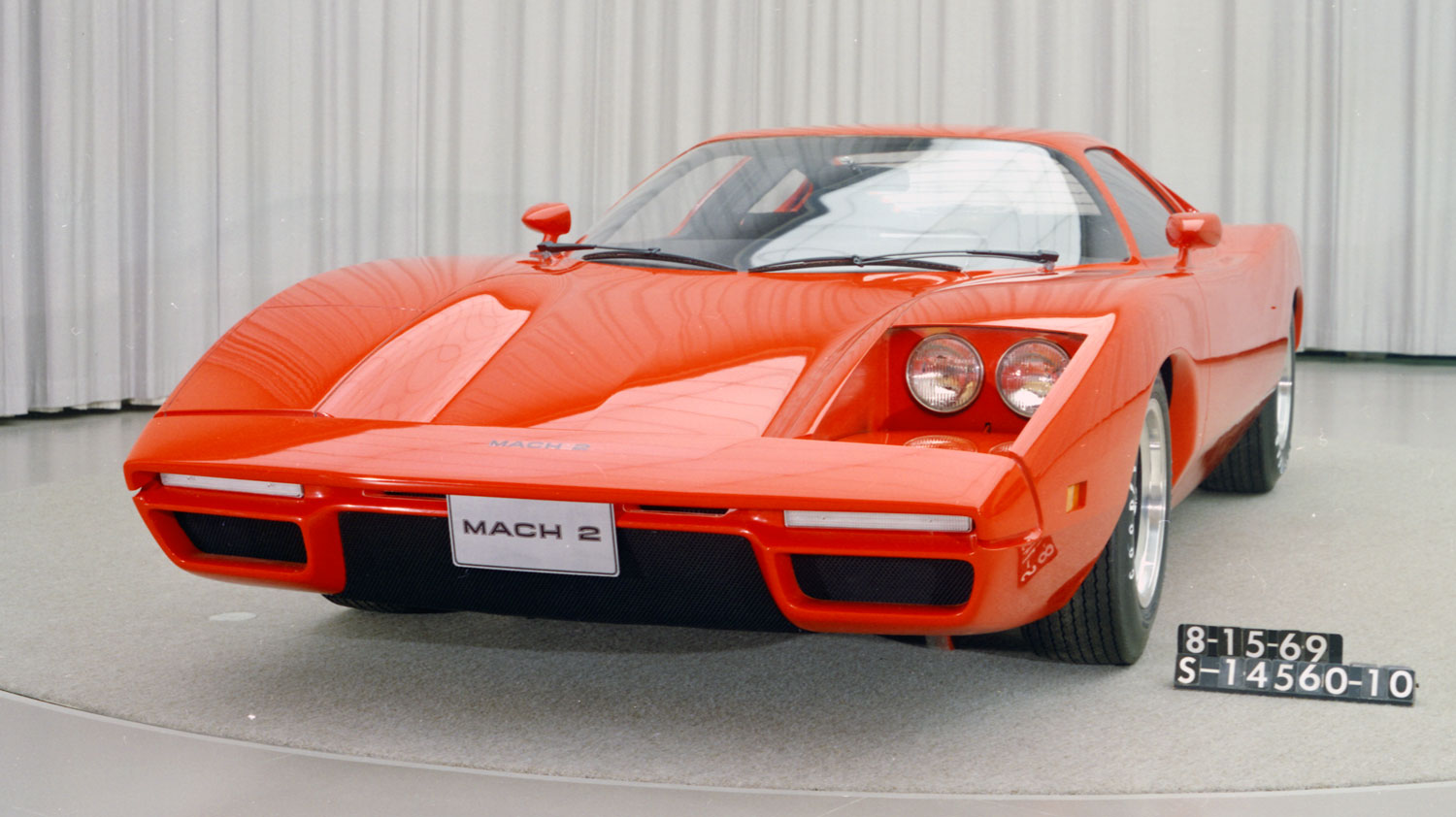

In spring 1968, Henry Ford II hired Semon “Bunkie” Knudsen away from GM to become Ford’s president. Knudsen got the job Iacocca wanted. When Kundsen came to Ford he brought two GM designers with him. One was Larry Shinoda of ‘63 Corvette Stingray fame. Shinoda and Bordinat didn’t get along. Shinoda ignored Bordinat, and looked to Knudsen for protection and directions. In other words, Shinoda only did the design work he and/or Knudsen wanted. One of the projects Shinoda undertook was to revise the Mach 2 concept into Ford’s answer to the Corvette, including provision for a big block engine in a substantially revised Mach 2, now called the Mach II. To make a long story short, in September 1969, Iacocca, Bordiant and others Ford executives were successful in getting Knudsen fired. Right after Knudsen was fired, Bordinat placed a call to Shinoda, who was in Germany attending an auto show. Bordinat told him he too was fired, and he needed to return to the U.S. quickly because his company credit card was being canceled. So ended Ford’s Corvette challenger called the Mach II.
Posted by permission.
Photos courtesy of Ford Archives.
From Ford Design Department—Concepts & Showcars, 1932-1961 by Jim and Cheryl Farrell
ISBN 0-9672428-0-0
Book review to come.
For book ordering information, email: cfarrell57@gmail.com
